Benefits
- Lower Heating Bills: Lower your heating bills - compared with traditional electric heaters, air source heat pump can save 70% of electricity.
- Reduce Carbon Emissions: Air source heat pumps are highly efficient -in fact up to 4 times more efficient than traditional boilers -and reduce carbon emissions by producing clean, renewable energy, not burning gas or oil.
- No time and weather restriction Air source heat pump can work in different types of weather and all year around
- Environment-friendly Air source heat pump was adapt green refrigerant, with no pollution.
- Intelligent control, no need for maintenance The whole unit is automatically controlled, no need for a professional maintenance guy
- Efficient at low temperatures , air source heat pumps can work in temperatures as low as -25 while still providing your home heating with the use of the EVI compressor.
- Low maintenance and long lifetime, The lifetime of an air source heat pump is typically around 20 years.
Product Description

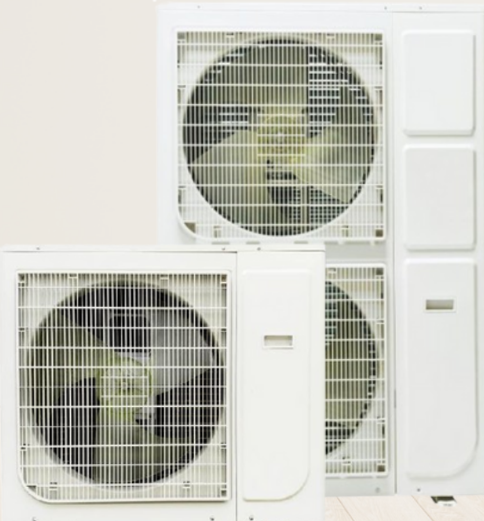

Introducing the R32 EVI Full DC Inverter Air to Water Heat Pump: the pinnacle of energy-efficient comfort. With its eco-conscious R32 refrigerant and Enhanced Vapor Injection technology, it delivers consistent heating and cooling year-round, even in extreme conditions. Plus, its Full DC Inverter technology ensures precise temperature control and minimal energy consumption, all while operating quietly. Experience supreme comfort and sustainability with this advanced heat pump.
Product Specifications
Power supply: AC220-240V,50Hz
Heating
(air+7°C/water35°C)
Capacity KW: 6.60
Heating water capacity KW: 1.56
Rated current A: 6.84
COP W/W: 4.22
Heating
(air+7°C/water45°C)
Capacity KW: 6.11
Heating water
capacity KW: 1.83
Rated current A: 8.11
COP W/W: 3.33
Heating
(air7°C/water55°C)
Capacity KW: 5.38
Heating water
capacity KW: 2.07
Rated current A: 9.12
COP W/W: 2.59
Cooling(air35°C/water7°C)
Capacity KW: 6.00
Input KW: 2.13
Rated current A: 9.38
EER W/W: 2.81
Electric heating KW: 3/6
current A: 13.6/26.08
Outdoor unit
Dimension mm: 940*375*800
Net/Gross weight kg: 50.0
Outdoor air flow m3/h: 2200
(water)flow rate m3/h: 1.15
Indoor unit
Dimension mm 500*335*715
Net/Gross weight kg 38.0
Type of sheet metal: mould or digital controlled
Design pressure MPa: 4.2
Refrigerant: R32
Heating water range: 20 – 55°C
Cooling water range: 7 – 31°C
Ambient temp: -25 °C – 43°C
Noise level(1 M) dB(A): ≦52.0
Power supply: AC220-240V,50Hz
Heating
(air+7°C/water35°C)
Capacity KW: 9.50
Heating water
capacity KW : 2.26
Rated current A: 9.92
COP W/W: 4.20
Heating
(air+7°C/water45°C)
Capacity KW: 8.91
Heating water
capacity KW: 2.68
Rated current A: 11.72
COP W/W: 3.32
Heating
(air7°C/water55°C)
Capacity KW: 8.43
Heating water
capacity KW: 3.25
Rated current A: 14.11
COP W/W: 2.59
Cooling(air35°C/water7
°C)
Capacity KW: 7.20
Input KW: 2.59
Rated current A: 11.40
EER W/W: 2.77
Electric heating KW 3/6
current A 13.6/26.08
Outdoor unit
Dimension mm 940*375*1340
Net/Gross weight kg 68.0
Indoor unit
Dimension mm: 500*335*715
Net/Gross weight kg: 41.0
Outdoor air flow m3/h: 2800
(water)flow rate m3/h: 1.6
Type of sheet metal: mould or digital controlled
Design pressure MPa: 4.2
Refrigerant: R32
Heating water range: 20 – 55°C
Cooling water range: 7 – 31°C
Ambient temp: -25 °C – 43°C
Noise level(1 M) dB(A) ≦53.0
Power supply: AC220-240V,50Hz
Heating
(air+7°C/water35°C)
Capacity KW 12.00
Heating water capacity KW 2.85
Rated current A 12.51/4.48
COP W/W: 4.20
Heating
(air+7°C/water45°C)
Capacity KW: 11.36 1
Heating water
capacity KW: 3.45
Rated current A: 15.07/5.33
COP W/W: 3.29
Heating
(air7°C/water55°C)
Capacity KW: 10.30
Heating water capacity KW: 3.96
Rated current A: 17.38/6.10
COP W/W: 2.60
Cooling(air35°C/water7
°C)
Capacity KW: 10.50
Input KW: 3.73
Rated current A: 16.33/5.78
EER W/W: 2.81
Electric heating KW: 3/6
current A: 13.6/26.08
Outdoor unit
Dimension mm: 940*375*1340
Net/Gross weight kg: 80.0
Indoor unit
Dimension mm: 500*335*715
Net/Gross weight kg: 45.0
Outdoor air flow m3/h: 5600
(water)flow rate m3/h: 2.05
Type of sheet metal: mould or digital controlled
Design pressure MPa: 4.2
Refrigerant: R32
Heating water range: 20 – 55°C
Cooling water range: 7 – 31°C
Ambient temp: -25 °C – 43°C
Noise level(1 M) dB(A): ≦55.0
Power supply: AC220-240V,50Hz
Heating
(air+7°C/water35°C)
Capacity KW: 15.00
Heating water capacity KW: 3.58
Rated current A: 15.63/5.48
COP W/W: 4.18
Heating
(air+7°C/water45°C)
Capacity KW: 13.92
Heating water
capacity KW: 4.24
Rated current A: 18.51/6.48
COP W/W: 3.28
Heating
(air7°C/water55°C)
Capacity KW: 12.95
Heating water
capacity KW: 4.98
Rated current A: 21.80/7.71
COP W/W: 2.60
Cooling(air35°C/water7°C)
Capacity KW: 12.00
Input KW: 4.33
Rated current A: 18.92/6.72
EER W/W: 2.77
Electric heating KW: 3/6
current A: 13.6/26.08
Outdoor unit
Dimension mm: 940*375*1340
Net/Gross weight kg: 88.0
Indoor unit
Dimension mm: 500*335*715
Net/Gross weight kg: 47.0
Outdoor air flow m3/h: 2200
(water)flow rate m3/h: 1.15
Type of sheet metal: mould or digital controlled
Design pressure MPa: 4.2
Refrigerant: R32
Heating water range: 20 – 55°C
Cooling water range: 7 – 31°C
Ambient temp: -25 °C – 43°C
Noise level(1 M) dB(A): ≦53.0
Power supply: AC220-240V,50Hz
Heating
(air+7°C/water35°C)
Capacity KW: 18.0
Heating water capacity KW: 4.37
Rated current A: 19.04/6.63
COP W/W: 4.11
Heating
(air+7°C/water45°C)
Capacity KW: 16.81
Heating water
capacity KW: 5.09
Rated current A: 22.21/7.88
COP W/W: 3.30
Heating
(air7°C/water55°C)
Capacity KW: 15.14
Heating water
capacity KW: 5.91
Rated current A: 25.77/9.11
COP W/W: 2.56
Cooling(air35°C/water7°C)
Capacity KW: 14.50
Input KW: 5.33
Rated current A: 23.24/8.15
EER W/W: 2.72
Electric heating KW: 3/6
current A: 13.6/26.08
Outdoor unit
Dimension mm: 940*375*1340
Net/Gross weight kg: 90.00
Indoor unit
Dimension mm: 500*335*715
Net/Gross weight kg: 52.0
Outdoor air flow m3/h: 2200
(water)flow rate m3/h: 1.15
Indoor unit
Dimension mm: *335*715 500*
Net/Gross weight kg: 52.0
Type of sheet metal: mould or digital controlled
Design pressure MPa: 4.2
Refrigerant: R32
Heating water range: 20 – 55°C
Cooling water range: 7 – 31°C
Ambient temp: -25 °C – 43°C
Noise level(1 M) dB(A): ≦53.
Power supply: AC 380-415V,50Hz
Heating
(air+7°C/water35°C)
Capacity KW: 20.0
Heating water capacity KW: 4.97
Rated current A: 7.62
COP W/W: 4.02
Heating
(air+7°C/water45°C)
Capacity KW: 18.83
Heating water
capacity KW: 5.81
Rated current A: 8.95
COP W/W: 3.24
Heating
(air7°C/water55°C)
Capacity KW: 17.74
Heating water
capacity KW: 7.01
Rated current A: 10.72
COP W/W: 2.53
Cooling(air35°C/water7°C)
Capacity KW: 16.00
Input KW: 5.97
Rated current A: 9.18
EER W/W: 2.68
Electric heating KW: 3/6
current A: 13.6/26.08
Outdoor unit
Dimension mm: 1145*439*1400
Net/Gross weight kg: 132.0
Indoor unit
Dimension mm: 500*335*715
Net/Gross weight kg: 54.0
Outdoor air flow m3/h: 2200
(water)flow rate m3/h: 1.15
Type of sheet metal: mould or digital controlled
Design pressure MPa: 4.2
Refrigerant: R32
Heating water range: 20 – 55°C
Cooling water range: 7 – 31°C
Ambient temp: -25 °C – 43°C
Noise level(1 M) dB(A): ≦62.0
