Product Description

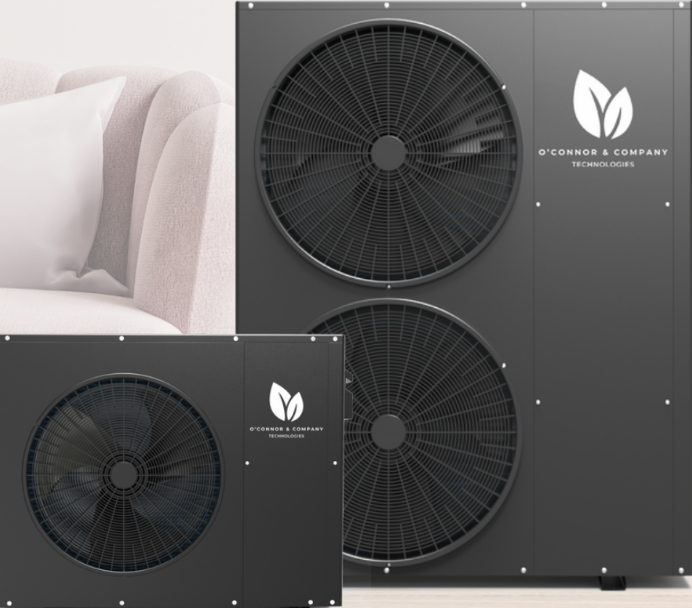

Introducing the Monoblock Series R32 EVI Full DC Inverter Air to Water Heat Pump: Efficient, compact, and powerful. With advanced R32 refrigerant and Enhanced Vapor Injection technology, it delivers superior performance in any climate. Its sleek design simplifies installation and maintenance, making it perfect for homes and businesses. Experience comfort and sustainability like never before with this cutting-edge heat pump.
Product Specifications
Power: 220-240V~/50Hz
Heating Capacity Range: KW 3- 10
Heating(A7/6C,W30/35C)
Heating Capacity: KW 9.2
Power Input KW: 2.08
COP W/W: 4.42
Heating(A7/6C,W40/45C)
Heating Capacity KW: 9.6
Power Input KW: 2.69
COP W/W: 3.57
Heating(A7/6C,W47/55C)
Heating Capacity: KW 8.5
Power Input KW: 2.98
COP W/W: 2.85
Heating(A- 10C,W30/35C)
Heating Capacity KW: 8.1
Power Input KW: 2.81
COP W/W: 2.88
Heating(A- 10C,W47/55C)
Heating Capacity KW: 7.2
Power Input KW: 3.35
COP W/W: 2. 15
Cooling(A35/24C,W23/18C)Cooling Capacity KW: 9.1
Power Input KW: 2.44
EER W/W: 3.73
Cooling(A35/24C,W12/7C)
Cooling Capacity KW: 7.6
Power Input KW: 2.59
EER W/W: 2.93
ERP performance /W35 A++(A+++)
ERP performance /W55 A++
Refrigerant / R32
Brand/Type of / Panasonic
Heat exchanger / SWEP Plate heat exchanger
Brand of Water pump (built-in) WILO
Water pump(built-in) RS15-6
Auxiliary element power((built-in)) 3KW
Expansion tank(built-in) 2L
Waterproof grade / IPX4
Noise pressure dB(A) 48
Max water outlet temperature °C 55
Diameter of water connection / DN 25 (1″)
Ambient Temperature -25°C~43°C
Air flow m3/h 3800
Net Dimensions ( L/W/H ) mm 1050/425/838
Package Dimensions ( L/W/H ) mm 1110/490/990
Net Weight KG 95
Gross Weight KG 108
Power: 220-240V~/50Hz
Heating Capacity Range KW: 4- 12.5
Heating(A7/6C,W30/35C)
Heating Capacity KW: 12
Power Input KW: 2.67
COP W/W: 4.5
Heating(A7/6C,W40/45C)
Heating Capacity KW: 11.6
Power Input KW: 3.25
COP W/W: 3.57
Heating(A7/6C,W47/55C)
Heating Capacity KW: 10.9
Power Input KW: 3.73
COP W/W: 2.92
Heating(A- 10C,W30/35C)
Heating Capacity KW: 10. 1
Power Input KW: 3.49
COP W/W: 2.89
Heating(A- 10C,W47/55C)
Heating Capacity KW: 9. 15
Power Input KW: 4.32
COP W/W: 2. 12
Cooling(A35/24C,W23/18C)
Cooling Capacity KW: 11.2
Power Input KW: 2.96
EER W/W: 3.78
Cooling(A35/24C,W12/7C)
Cooling Capacity KW: 10. 1
Power Input KW: 3.36
EER W/W: 3.01
ERP performance /W35 A+++
ERP performance /W55 A++
Refrigerant / R32
Brand/Type of / GMCC
Heat exchanger / SWEP Plate heat exchanger
Brand of Water pump (built-in) WILO
Water pump(built-in) RS25-8
Auxiliary element power((built-in)) 3KW
Expansion tank(built-in) 2L
Waterproof grade / IPX4
Noise pressure dB(A) 50
Max water outlet temperature °C 55
Diameter of water connection / DN 25 (1″)
Ambient Temperature -25°C~43°C
Air flow m3/h 4800
Net Dimensions ( L/W/H ) mm 1050/425/838
Package Dimensions ( L/W/H ) mm 1110/490/ 1100 11
Net Weight KG: 109
Gross Weight KG: 125
Power: 220-240V~/50Hz or380-420V 3N~/50Hz Heating Capacity Range KW: 4.7- 15.5
Heating(A7/6C,W30/35C)
Heating Capacity KW: 14.5
Power Input KW: 3.30
COP W/W: 4.4
Heating(A7/6C,W40/45C)
Heating Capacity KW: 15.2
Power Input KW: 4.35
COP W/W: 3.49
Heating(A7/6C,W47/55C)
Heating Capacity KW: 13.5
Power Input KW: 4.82
COP W/W: 2.8
Heating(A- 10C,W30/35C)
Heating Capacity KW: 12.4
Power Input KW: 4. 18
COP W/W: 2.97
Heating(A- 10C,W47/55C)
Heating Capacity KW: 11.7
Power Input KW: 5.37
COP W/W: 2. 18
Cooling(A35/24C,W23/18C)
Cooling Capacity KW: 15.3
Power Input KW: 4.07
EER W/W: 3.76
Cooling(A35/24C,W12/7C)
Cooling Capacity KW: 12.6
Power Input KW: 4.26
EER W/W: 2.96
ERP performance /W35 A+++
ERP performance /W55 A++
Refrigerant / R32
Brand/Type of / Panasonic
Heat exchanger / SWEP Plate heat exchanger
Brand of Water pump (built-in) WILO / /
Water pump(built-in) RS25-8
Auxiliary element power((built-in)) 3KW
Expansion tank(built-in) 5L
Waterproof grade / IPX4
Noise pressure dB(A) 52
Max water outlet temperature °C 55
Diameter of water connection / DN 25 (1″)
Ambient Temperature -25°C~43°C
Air flow m3/h 6200
Net Dimensions ( L/W/H ) mm 1050/425/943
Package Dimensions ( L/W/H ) mm 1110/490/1495
Net Weight KG 137
Gross Weight KG 152
Power 220-240V~/50Hz
or380-420V 3N~/50Hz
Heating Capacity Range KW: 6-20
Heating(A7/6C,W30/35C)
Heating Capacity KW: 18
Power Input KW: 3.90
COP W/W: 4.62
Heating(A7/6C,W40/45C)
Heating Capacity KW: 18.5
Power Input KW: 5.18
COP W/W: 3.57
Heating(A7/6C,W47/55C)
Heating Capacity KW: 16.3
Power Input KW: 5.64
COP W/W: 2.89
Heating(A- 10C,W30/35C)
Heating Capacity KW: 15.5
Power Input KW: 5.20
COP W/W: 2.98
Heating(A- 10C,W47/55C)
Heating Capacity KW: 14.3
Power Input KW: 6.53
COP W/W: 2. 19
Cooling(A35/24C,W23/18C)
Cooling Capacity KW: 19
Power Input KW: 4.91
EER W/W: 3.87
Cooling(A35/24C,W12/7C)
Cooling Capacity KW: 15
Power Input KW: 4.93
EER W/W 3.04
ERP performance /W35 A+++
ERP performance /W55 A++
Refrigerant / R32
Brand/Type of / Panasonic
Heat exchanger / SWEP Plate heat exchanger
Brand of Water pump (built-in) WILO
Water pump(built-in) RS25-8
Auxiliary element power((built-in)) 3KW
Expansion tank(built-in) 5L
Waterproof grade / IPX4
Noise pressure dB(A) 53
Max water outlet temperature °C 55
Diameter of water connection / DN 25 ( 1″)
Ambient Temperature -25°C~43°C
Air flow m3/h 7000
Net Dimensions ( L/W/H ) mm 1050/425/ 1343
Package Dimensions ( L/W/H ) mm 1110/490/ 1497
Net Weight KG: 142
Gross Weight KG: 158
Power: 380-420V3N~/50Hz
Heating Capacity Range KW 8-26.2
Heating(A7/6C,W30/35C)
Heating Capacity KW: 24.4
Power Input KW: 5.34
COP W/W: 4.57
Heating(A7/6C,W40/45C)
Heating Capacity KW: 25.3
Power Input KW: 6.92
COP W/W: 3.66
Heating(A7/6C,W47/55C)
Heating Capacity KW: 21.9
Power Input KW: 7.50
COP W/W: 2.92
Heating(A- 10C,W30/35C)
Heating Capacity KW: 22
Power Input KW: 7.31
COP W/W: 3.01
Heating(A- 10C,W47/55C)
Heating Capacity KW: 20.5
Power Input KW: 9.32
COP W/W: 2.2
Cooling(A35/24C,W23/18C)
Cooling Capacity KW: 26.1
Power Input KW: 6.69
EER W/W: 3.9
Cooling(A35/24C,W12/7C)
Cooling Capacity KW: 20.5
Power Input KW: 6.41
EER W/W: 3.2
ERP performance /W35 A+++
ERP performance /W55 A++
Refrigerant / R32
Brand/Type of / Panasonic
Heat exchanger / SWEP Plate heat exchanger
Brand of Water pump (built-in) /
Water pump(built-in) /
Auxiliary element power((built-in)) 3KW
Expansion tank(built-in) 5L
Waterproof grade / IPX4
Noise pressure dB(A) 56
Max water outlet temperature °C 55
Diameter of water connection / DN 40 ( 1- 1/2″)
Ambient Temperature -25°C~43°C
Air flow m3/h: 9200
Net Dimensions ( L/W/H ) mm 1215/455/ 1557
Package Dimensions ( L/W/H ) mm 1280/520/ 1690
Net Weight KG 175
Gross Weight KG 197
Power: 380-420V3N~/50Hz
Heating Capacity Range KW: 10-31
Heating(A7/6C,W30/35C)
Heating Capacity KW: 29.6
Power Input KW: 6.53
COP W/W: 4.53
Heating(A7/6C,W40/45C)
Heating Capacity KW: 30.5
Power Input KW: 8.52
COP W/W: 3.58
Heating(A7/6C,W47/55C)
Heating Capacity KW: 25.9
Power Input KW: 8.87
COP W/W: 2.92
Heating(A- 10C,W30/35C)
Heating Capacity KW: 26
Power Input KW: 8.78
COP W/W: 2.96
Heating(A- 10C,W47/55C)
Heating Capacity KW: 24
Power Input KW: 11.01
COP W/W: 2. 18
Cooling(A35/24C,W23/18C)
Cooling Capacity KW: 30.8
Power Input KW: 8.00
EER W/W: 3.85
Cooling(A35/24C,W12/7C)
Cooling Capacity KW: 25.6
Power Input KW: 8. 13
EER W/W: 3. 15
ERP performance /W35 A+++
ERP performance /W55 A++
Refrigerant / R32
Brand/Type of / Panasonic
Heat exchanger / SWEP Plate heat exchanger
Brand of Water pump (built-in) /
Water pump(built-in) /
Auxiliary element power((built-in)) 3KW
Expansion tank(built-in) 5L
Waterproof grade / IPX4
Noise pressure dB(A): 58
Max water outlet temperature °C 55
Diameter of water connection / DN 40 ( 1- 1/2″)
Ambient Temperature -25°C~43°C
Air flow m3/h: 9800
Net Dimensions ( L/W/H ) mm 1215/455/ 1557
Package Dimensions ( L/W/H ) mm 1280/520/ 1690
Net Weight KG: 188
Gross Weight KG: 210
